Pipe Outlet Fittings

BRANCH OUTLET FITTINGS – WELDING, SOCKET WELD, THREADED OUTLETS MANUFACTURER, EXPORTERS IN INDIA

FORGED BRANCH OUTLET FITTINGS, BRANCH CONNECTION FITTINGS, PIPE OUTLETS MANUFACTURER

BUTTWELD, SOCKET WELD, THREADED PIPE OUTLETS – MSS-SP-97, B16.11 (CLASSES 3000, 6000, 9000), ASTM A105, A18


Elbow Outlets, Swept Outlet Fittings, Branch Connection Fittings Supplier, Lateral Outlets, Stainless Steel 304 Welding Outlets, A105 Welding Outlets, A105 Socket Weld Outlet Fittings, Welding Outlets Supplier, Threaded Outlets Exporter, Socket Weld Outlets Manufacturer, Nipple Outlets, Stainless Steel 316 Welding Outlets, Duplex Welding Outlets, Inconel Welding Outlets, High Quality Branch Connections

Vandan Alloys is a Dominant manufacturer of buttweld pipe outlets, socket weld, and threaded pipe outlets in all material grades and wall thicknesses and in compliance with international standard MSS-SP-97. Our forged pipe outlet products are available in various grades including carbon steel conforming to ASTM A105/SA105N and NACE MR-01-75 and stainless steel to ASTM A182 F304, F304L, F316, and F316L. Upon request, we can also manufacture pipe outlet fittings in special materials such as 904L, 347H, Duplex, Super Duplex, Inconel, Monel, Incoloy and Hastelloy series of metals. Branch outlet fittings are widely used in processing plant for sulphuric, phosphoric and acetic acids, pulp and paper processing, components in gas scrubbing plants, seawater cooling equipment, oil refinery components, petrochemical plants, and various other industries.

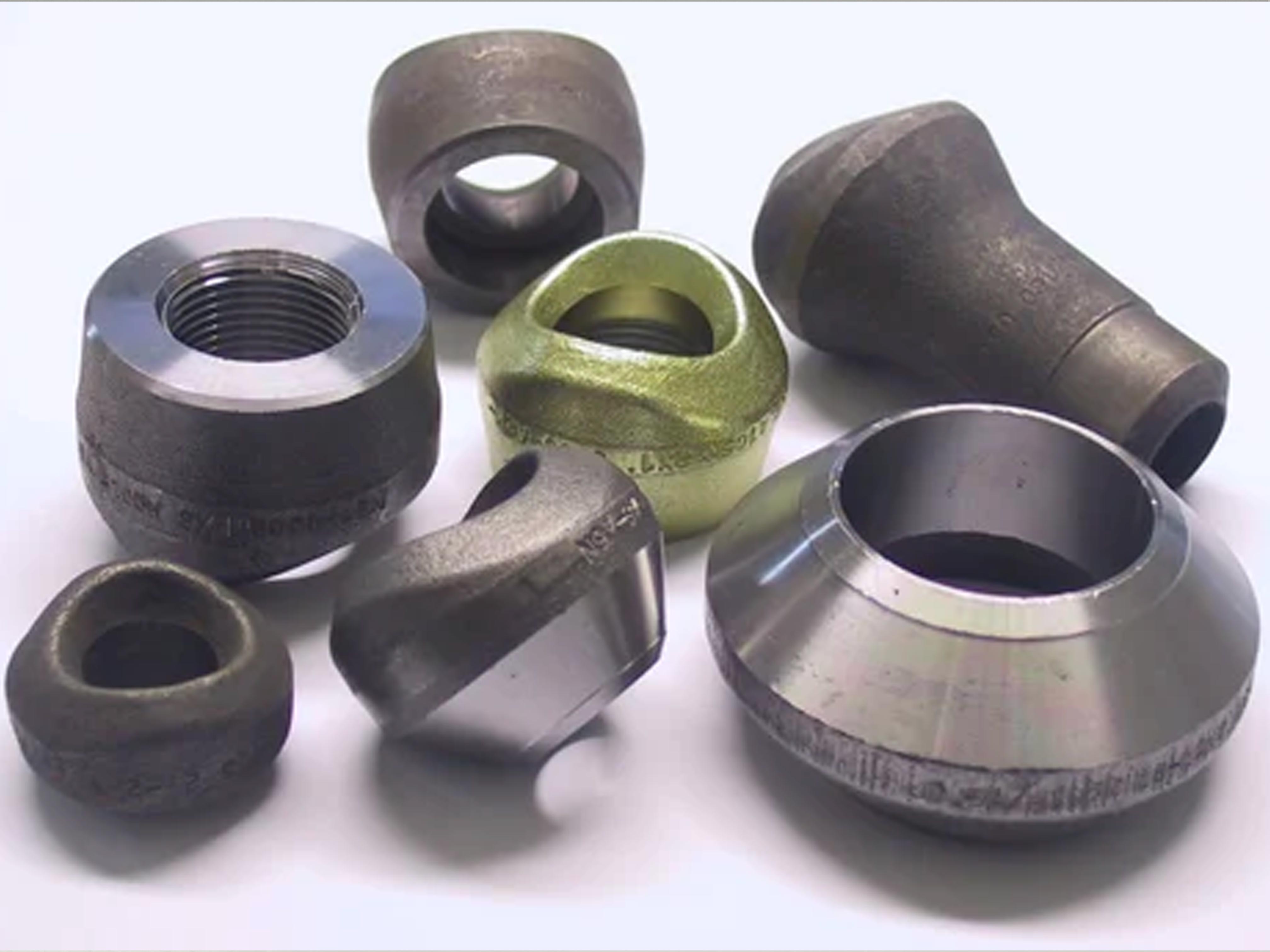

Our production range includes forged pipe outlets such as welding outlets, socket weld outlets, threaded outlets, lateral outlets, elbow outlets and nipple outlets. We can also manufacture and supply forged flanged outlet fitting in Class 150 to Class 2500 flange ratings. Lateral and Elbow outlets can be supplied in butt-weld, socket-weld, and threaded end connections. Weld pipe outlet is one of the most commonly used branch connection fitting. It is widely considered a buttweld fitting, as it is welded onto the outlet of the pipe. A welding outlet helps in minimizing the stress concentrations and provides integral reinforcement without the need for reinforcing the weld.

We can manufacture forged steel outlets in NPT threaded type or Butt-welding type or Socket welding type in conformance with international standards and certifications. We can manufacture and supply welding outlets and other pipe outlets in custom as well as variety of standard wall thicknesses (STD, XS, S 160 & XXS and special thickness). All our pipe outlet fittings are manufactured keeping in mind highest quality standards and are supplied with certification in accordance with EN 10204 3.1.


Carbon, Alloy, Stainless Steel Pipe Outlets – Manufacturing Standards

ASTM A182 – ASME SA182 Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.11 Forged Fittings Socket – Welding and Threaded
MSS SP-97 Integrally Reinforced Forged Branch Outlet Fittings – Socket Welding, Threaded and Buttwelding Ends

Stainless Steel Pipe Outlets – Welding Outlets, Socket Weld Outlets, Threaded Outlets

ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Alloy Steel Outlets – Welding Outlets, Socket Weld Outlets, Threaded Outlets

ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91

Carbon Steel Outlets – Welding Outlets, Socket Weld Outlets, Threaded Outlets

ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70

Duplex Steel Outlets – Welding Outlets, Socket Weld Outlets, Threaded Outlets

ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.

Low Temperature Carbon Steel Outlets – Welding Outlets, Socket Weld Outlets, Threaded Outlets

A350 LF3/A350 LF2

Nickel Alloy Outlets – Welding Outlets, Socket Weld Outlets, Threaded Outlets

ASTM / ASME SB 564 / 160 / 472 – UNS 10276 (HASTELLOY C 276 Outlets), UNS 2200 (NICKEL 200 Outlets), UNS 2201 (NICKEL 201 Outlets), UNS 4400 (MONEL 400 Outlets), UNS 8020 (ALLOY 20 Outlets), UNS 8825 (INCONEL 825 Outlets), UNS 6600 (INCONEL 600 Outlets), UNS 6601 (INCONEL 601 Outlets), UNS 6625 (INCONEL 625 Outlets)

Copper Alloy Outlets – Welding Outlets, Socket Weld Outlets, Threaded Outlets

ASTM / ASME SB 61 / 62 / 151 / 152 – C70600 (CUNI-90/10 Cupro Nickel Outlets), C71500 (CUNI-70/30 Copper Nickel Outlets)



Marking & Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At Vandan Alloys, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates:

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
