ASME/ANSI B16.5 LAP JOINT PIPE FLANGES MANUFACTURER IN INDIA
MANUFACTURER/EXPORTER OF HIGH QUALITY LAP JOINT (LJ) FORGED FLANGES
CARBON, ALLOY, STAINLESS STEEL LAP JOINT FLANGES
Vandan Alloys is a specialised manufacturer of high quality ASME/ANSI/DIN industrial lap joint flanges in India. We offer immediate delivery programs for standard size carbon steel lap joint flanges and stainless steel lap joint flanges. Lap joint flanges manufactured in carbon steel, special stainless steel grades, nickel alloy and alloy steel can be supplied with just in time programs.

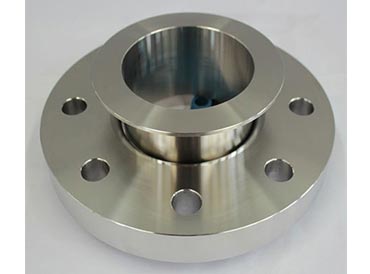

Lap Joint Flanges are similar to other types of industrial flanges, but it does not have a raised face. Lap joint flanges are used in conjunction with a “Lap Joint Stub End”. The total initial cost of a lap joint flange along with a stub end is around one-third higher than that of comparable welding neck flanges. The pressure holding capacity of lap joint flanges is comparatively lower, and the fatigue life for the assembly is only one tenth that of welding neck flanges.
The lap joint flange with the stub end assembly is normally used in piping systems which require regular dismantling for inspection and cleaning. These flanges slip over the pipe, and are not welded or otherwise fastened to it. Bolting pressure is transmitted to the gasket by the pressure of the flange against the back of the pipe lap (Stub End).
Benefits of using lap joint flanges:
Freedom to swivel around the pipe facilitates the lining up of opposing flange bolt holes. Lack of contact with the fluid in the pipe often permits the use of inexpensive carbon steel flanges with corrosion resistant pipe. In systems which erode or corrode quickly, the flanges may be salvaged for re-use.
We offer lap joint flanges manufactured at our facility to companies in various industries including shipbuilding, power generation, petrochemical plants, oil refineries, waste water treatment plants, paper mills, pharmaceutical plants and turnkey projects among others.
Our products are widely exported to countries and regions such as the United States, Europe, Russia, Turkey, Malaysia, the UAE, Saudi Arabia, Iran, Brazil, Chile, Mexico, South Africa, Jordan, Tunisia, Vietnam, Indonesia, Thailand, Singapore, Colombia, and Sri Lanka.
